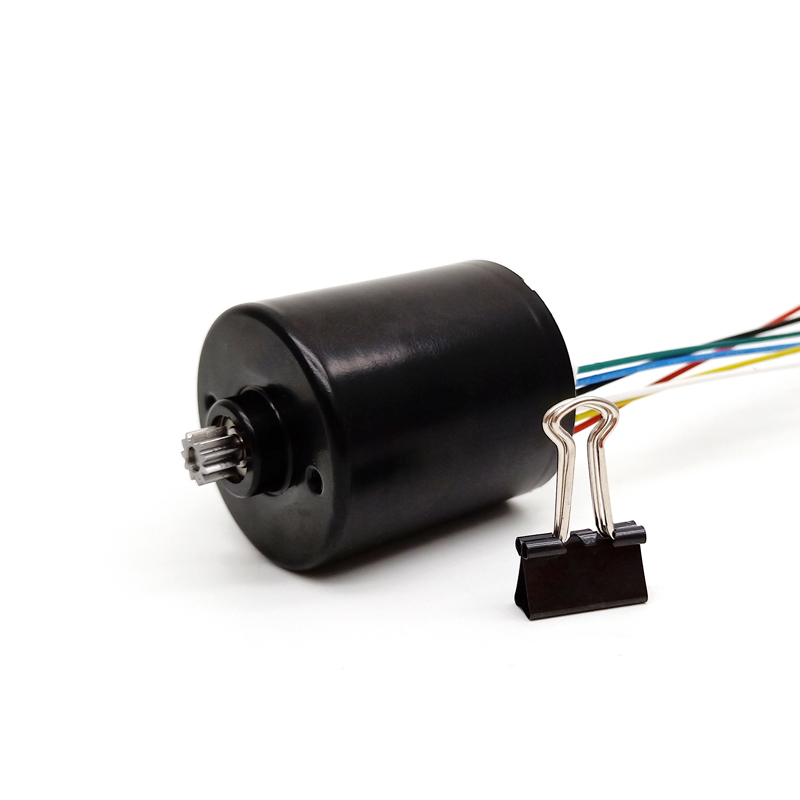

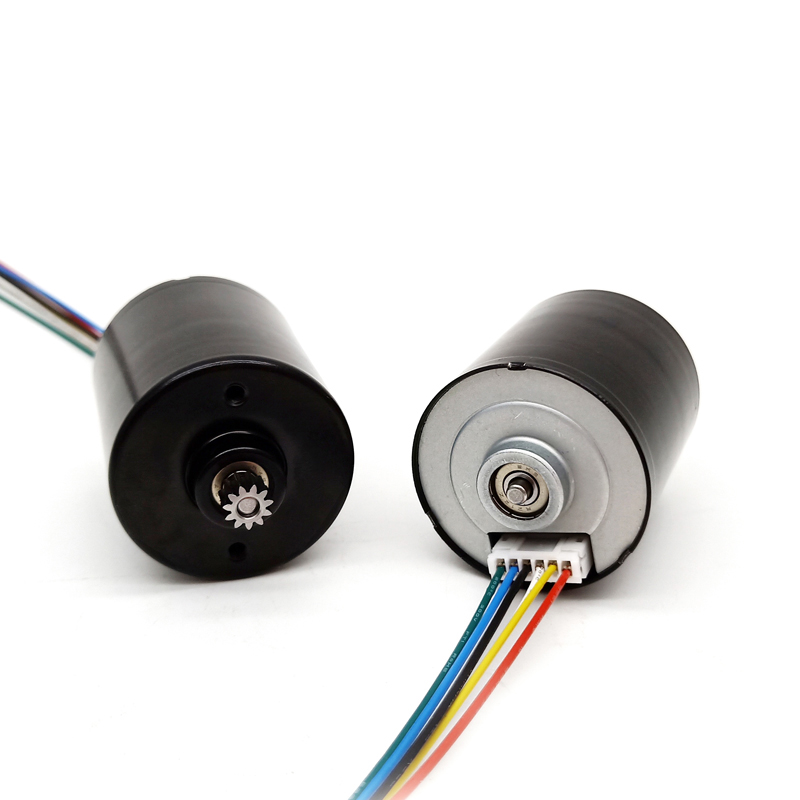

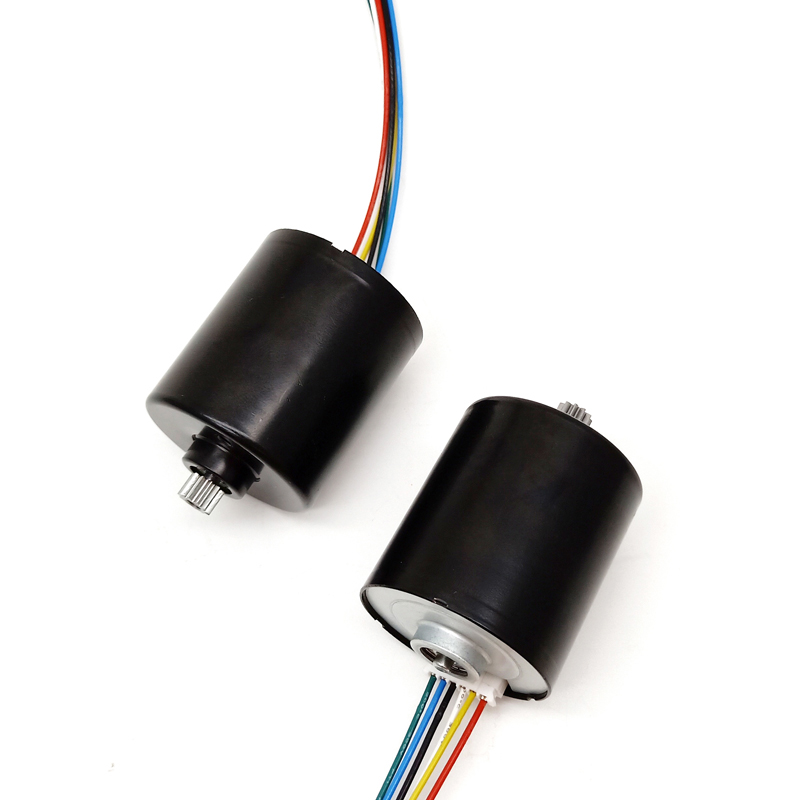

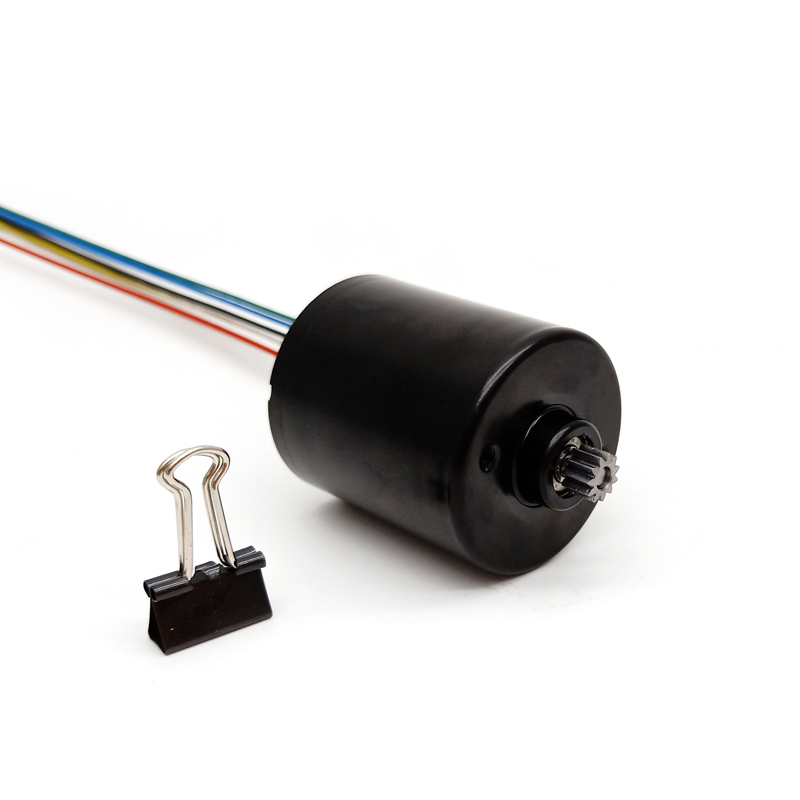

24v High Speed Bldc Motor 36mm Brushless Dc Motor 12v
Product Description
24v High Speed BLDC Motor 36mm Brushless DC Motor 12v
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

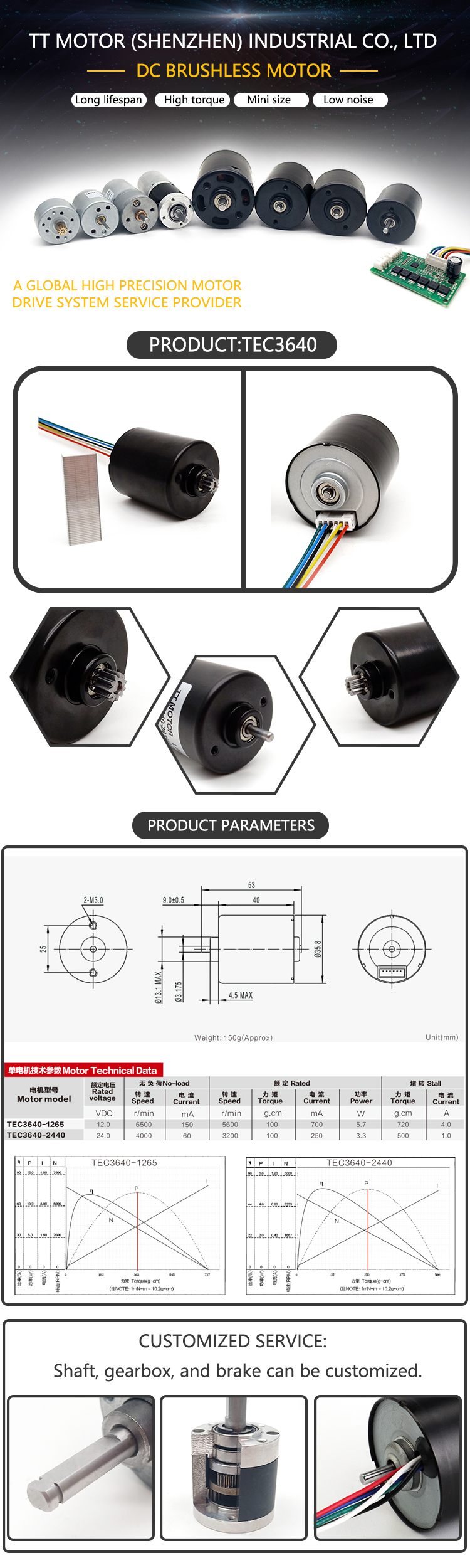

Model Specifications: TEC3640 Motor
| Model No. | Voltage Details | Speed Metrics | Current & Torque |
|---|---|---|---|
| TFC3640-1250 | Rated Voltage: 12VDC | Rated Speed: 4000 r/min | Output Power: 6.2W |
| No-load Speed: 5000 r/min | Rated Torque: 150 g.cm | Stall Torque: 600 g.cm | |
| No-load Current: 750mA | Rated Current: 1000mA | Stall Current: 2.5A | |
| TFC3640-1233 | Rated Voltage: 12VDC | Rated Speed: 2400 r/min | Output Power: 6.2W |
| No-load Speed: 3300 r/min | Rated Torque: 250 g.cm | Stall Torque: 880 g.cm | |
| No-load Current: 250mA | Rated Current: 1000mA | Stall Current: 2.5A | |
| TFC3640-2433 | Rated Voltage: 24VDC | Rated Speed: 2400 r/min | Output Power: 7.4W |
| No-load Speed: 3300 r/min | Rated Torque: 300 g.cm | Stall Torque: 1650 g.cm | |
| No-load Current: 130mA | Rated Current: 500mA | Stall Current: 3.0A |
Main Features

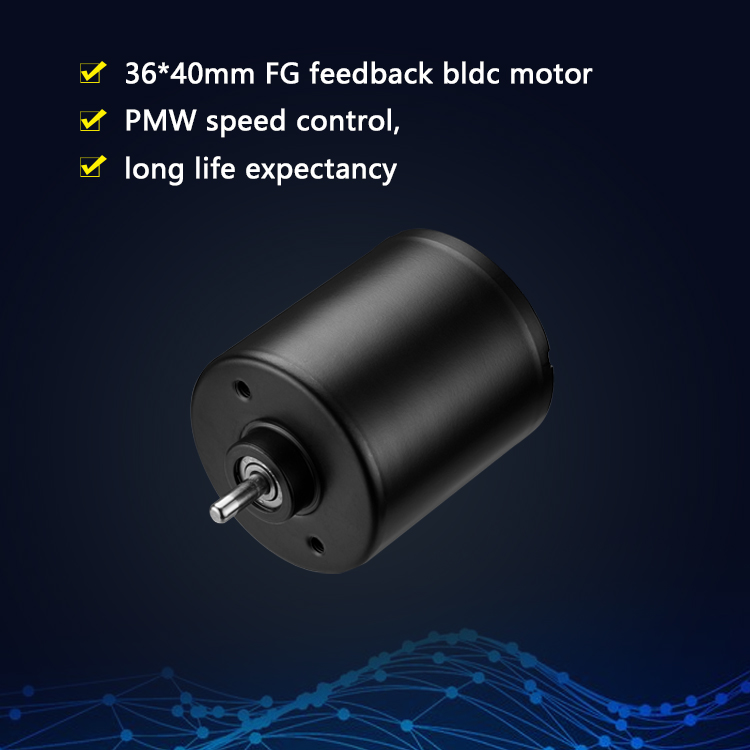

- 36mm brushless motor design
- Low noise, long working life. Built-in drive (Power on to work)
- Supports Reverse rotation and Brake control
- PWM Speed control and FG signal feedback
- Compatible and available with planetary gearbox configuration
Extended Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, and more.
Other Application Fields
| Industry Sector | Primary Application Areas |
|---|---|
| Business Machines | Vending Machines, Printers, ATM, Copiers and Scanners |
| Camera and Optical | Video, Cameras, Projectors |
| Lawn and Garden | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Quality Certifications
ISO9001, SGS, National High-Tech Enterprise status, and more.
Manufacturing Capabilities
The manufacturing operations have been specializing in micro motors, gear motors and their respective component parts since 2000. The products are widely integrated within entertainment systems, automobile applications, home and industrial appliances, power tools, and various other fields. Focused on dependable and long-lasting quality built on decades of production experience, 98% of the manufactured output is exported globally.
Customer Partnership Highlights
Collaborating with global brands including NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard secure packaging to ensure damage-free transit.
Estimated Shipping Times
- DHL: 3-5 working days
- UPS: 5-7 working days
- TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- China Post: Subject to destination country
- Sea Freight: Subject to destination port
Customer Feedback
"Excellent quality, better price, good service, and on-time delivery."
Frequently Asked Questions (FAQ)
Q: How do I place an order?
A: Send us your inquiry → Receive our quotation → Negotiate specific details → Confirm the sample → Sign the contract/deposit → Mass production begins → Cargo prepared → Balance payment/Delivery execution → Future cooperation.
Q: Can I request a sample order?
A: Yes, samples are available. Please reach out to discuss specific requirements. Sample fees charged are fully refunded once a formal commercial order is placed.
Q: What shipping options are available?
A: We support shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Alternative logistics configurations can be arranged upon request.
Q: What is the typical lead time for production and shipping?
A: Production and delivery timelines depend on your order size. Standard manufacturing takes between 15 to 25 working days.
Q: What should I do if my package has missing products?
A: Please contact the support team immediately, and we will verify the order records against the dispatch package contents to resolve the issue.
Q: How is payment confirmed and processed?
A: We accept payment via T/T and PayPal. Other payment options can be arranged upon agreement prior to processing. A 30% to 50% deposit is available, with the remaining balance due before shipping.
