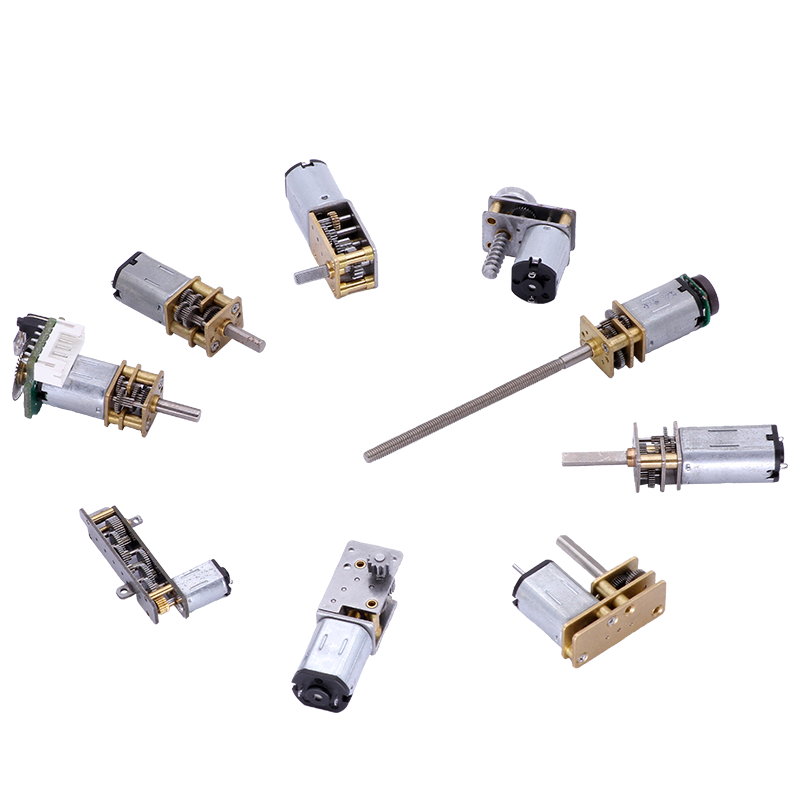

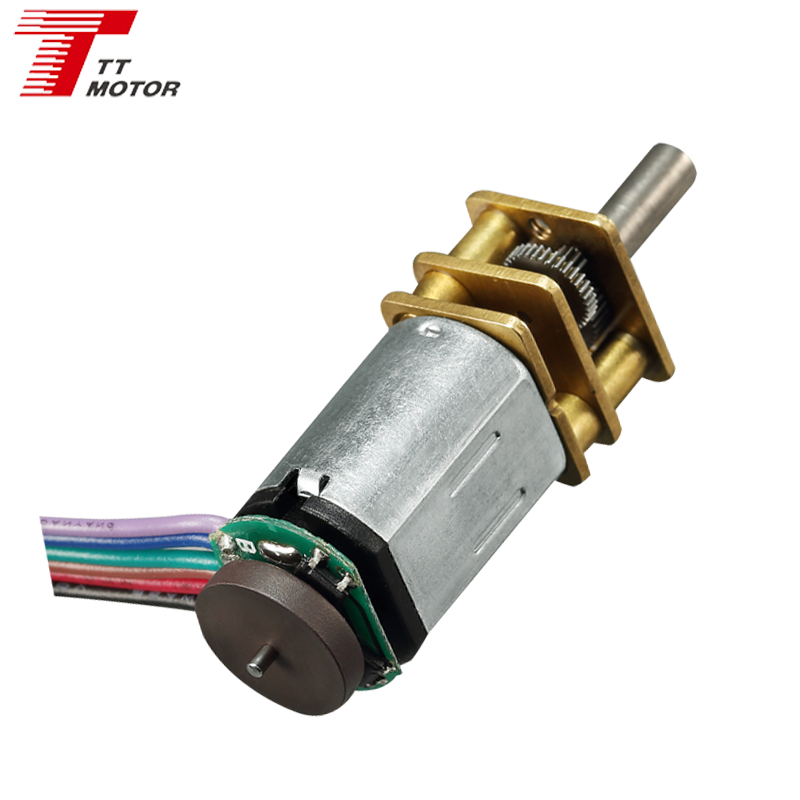

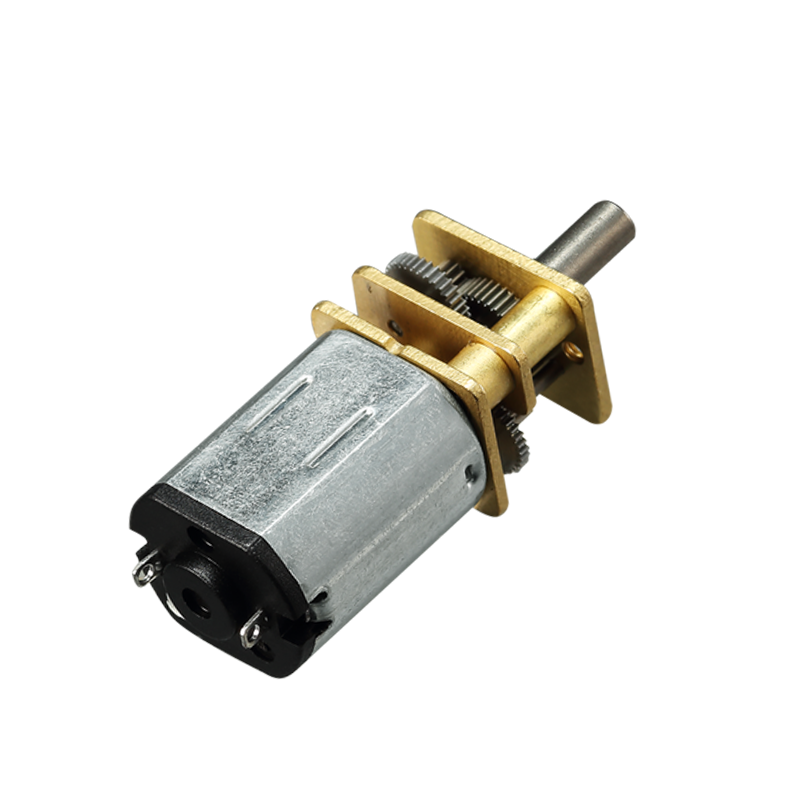

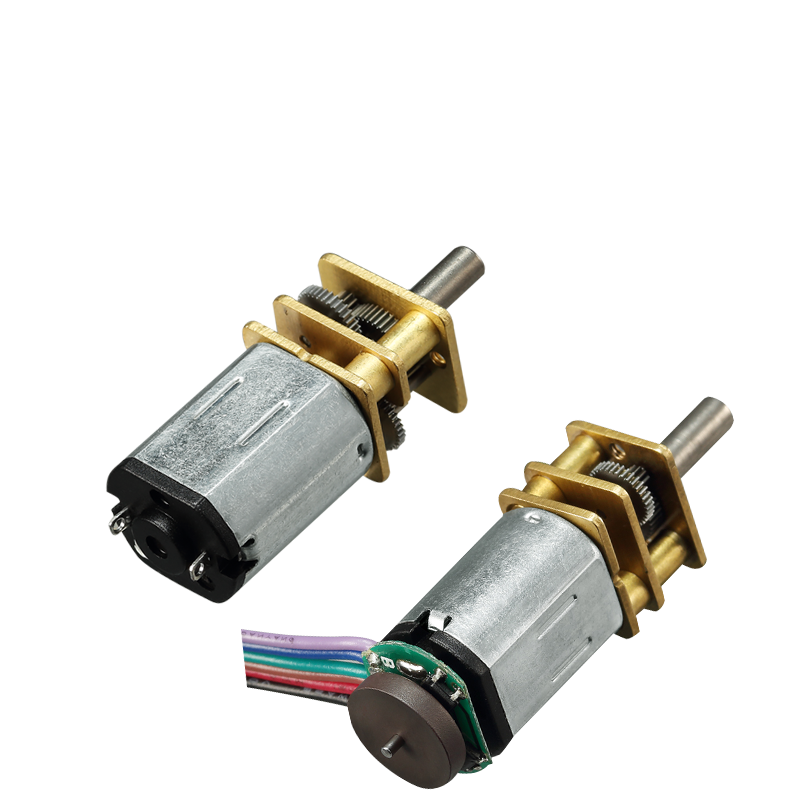

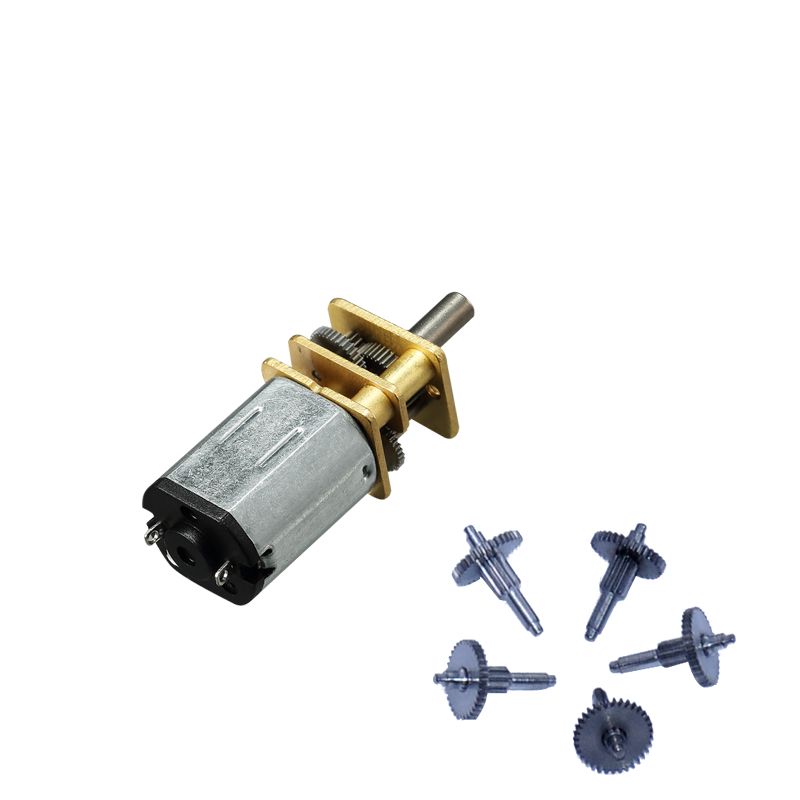

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder
Product Description
GM12-N20VA DC 6v mini metal N20 gear motor with encoder
Main Features
- 12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.1Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- DC Gear motors can match encoder, 3ppr
- Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000
Model: Motor GM12-N20VA
| Model Specifications | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Stall Torque | Stall Current | Output Power |
|---|---|---|---|---|---|---|---|---|---|
| TFF-N20VA-13110 | 2.4V DC | 14800 r/min | 60mA | 12000 r/min | 2.5 g.cm | 200mA | 13 g/cm | 1.20A | 0.31W |
| TFF-N20VA-09220 | 5V DC | 14800 r/min | 30mA | 12000 r/min | 2.5 g.cm | 120mA | 13 g/cm | 0.52A | 0.31W |
| TFF-N20VA-05430 | 12V DC | 16000 r/min | 15mA | 12500 r/min | 3.0 g.cm | 60mA | 13 g/cm | 0.25A | 0.35W |
GM12-N20VA-13110-xxx
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed rpm | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max.momentary tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-09220-xxx
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed rpm | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max.momentary tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-05430-xxx
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 |
| Rated speed rpm | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 |
| Rated torque kg.cm | 0.02 | 0.05 | 0.08 | 0.18 | 0.27 | 0.37 | 0.45 | 0.5 | 0.5 |
| Max.momentary tolerance torque kg.cm | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Others Application
| Category | Application Area 1 | Application Area 2 | Application Area 3 | Application Area 4 |
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
