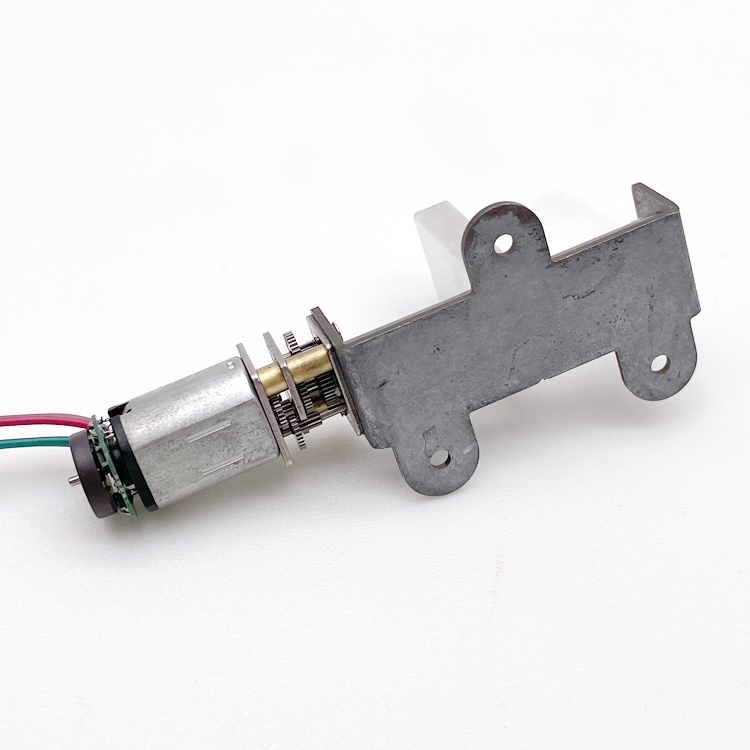

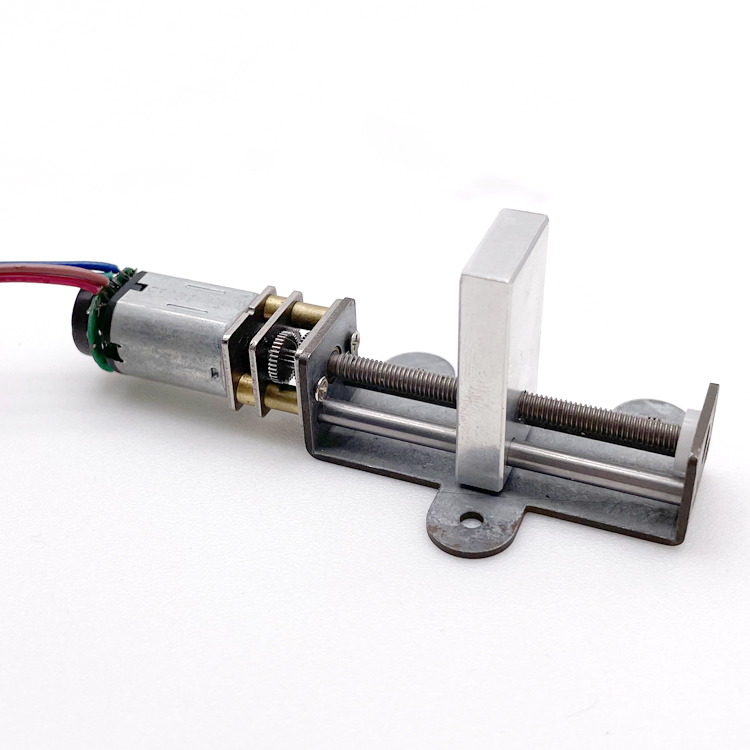

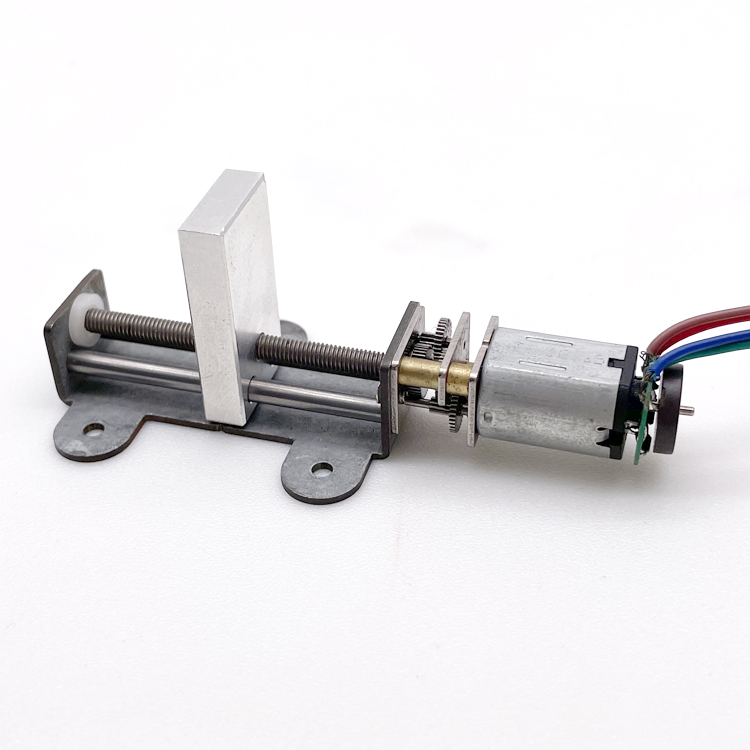

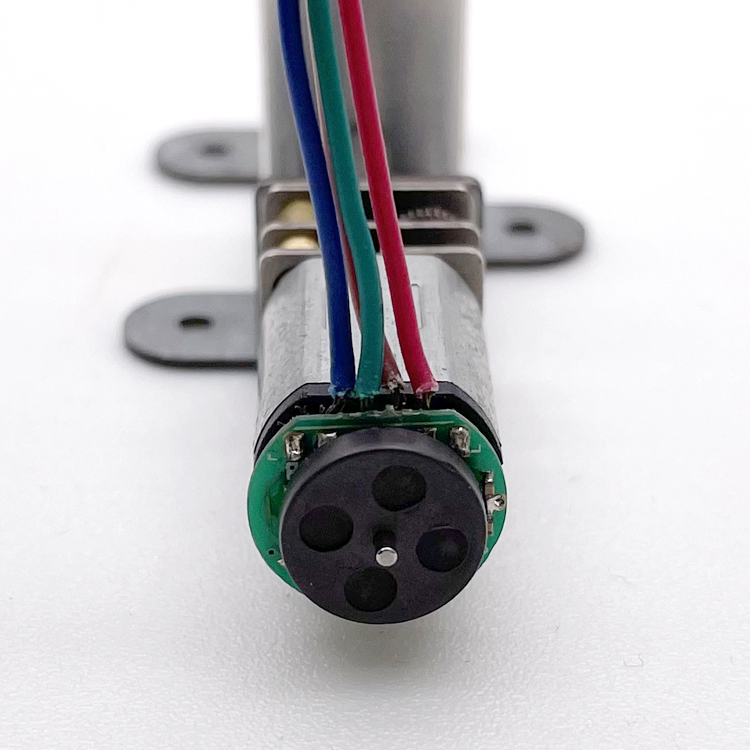

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

3v dc mini gear motor 12mm electric motor with encoder

Main Features

✦ 12*10 mm gearbox plus N20 & N30 permanent magnet dc motor

✦ Small size dc gear motor with low speed and big torque

✦ 12mm gear motor provide 0.1Nm torque and more reliable

✦ Suitable to small diameter, low noise and big torque application

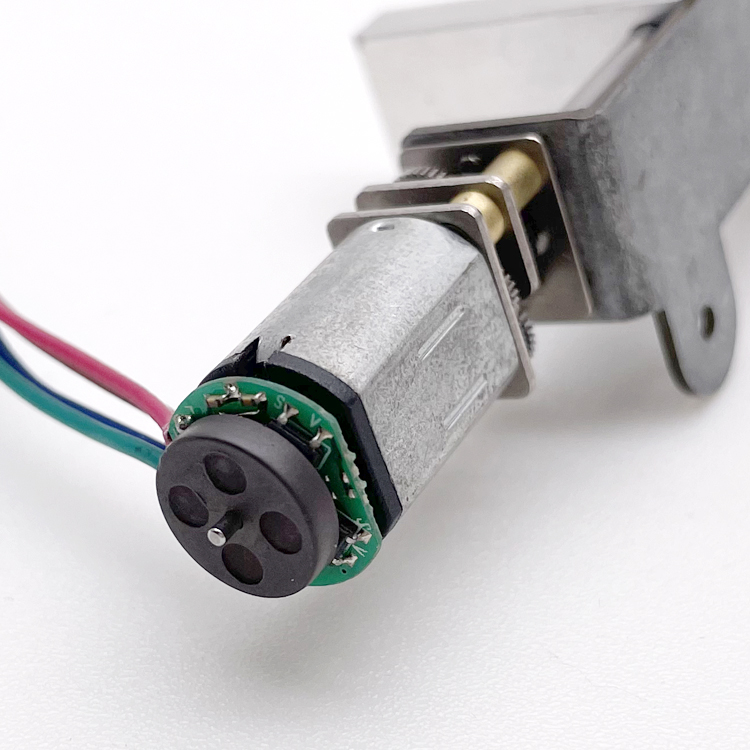

✦ DC Gear motors can match encoder, 3ppr

✦ Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Product Specifications

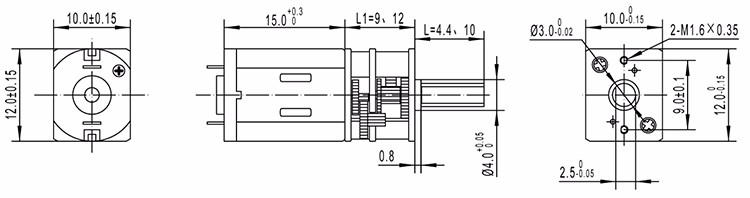

Model: Motor GM12-N20VA
TFF-N20VA-13110	Rated voltage: 2.4V DC	Rated speed: 12000r/min	Output power: 0.31W
	No-load speed: 14800r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 60mA	Rated current: 200mA	Stall current: 1.20A
TFF-N20VA-09220	Rated voltage: 5V DC	Rated speed: 12200r/min	Output power: 0.31W
	No-load speed: 15000r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 30mA	Rated current: 120mA	Stall current: 0.6A
TFF-N20VA-05430	Rated voltage: 12V DC	Rated speed: 12500r/min	Output power: 0.35W
	No-load speed: 16000r/min	Rated torque: 3.0g.cm	Stall torque: 13g/cm
	No-load current: 15mA	Rated current: 60mA	Stall current: 0.25A

GM12-N20VA-13110-EN

Parameter	10	30	50	100	150	210	250	298	380
Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max.momentary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-EN

Parameter	10	30	50	100	150	210	250	298	380
Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1480	490	290	150	98	70	60	50	38
Rated speed rpm	1220	405	245	122	81	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max.momentary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-EN

Parameter	10	30	50	100	150	210	250	298	380
Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1550	530	310	160	110	78	60	55	43
Rated speed rpm	1100	400	250	125	83	60	50	42	33
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max.momentary tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Application

✔ Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

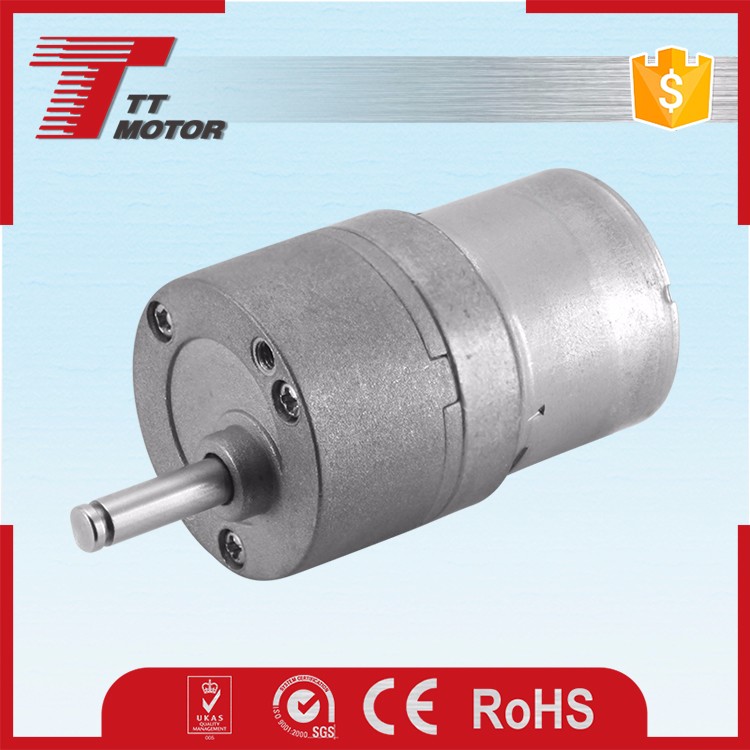

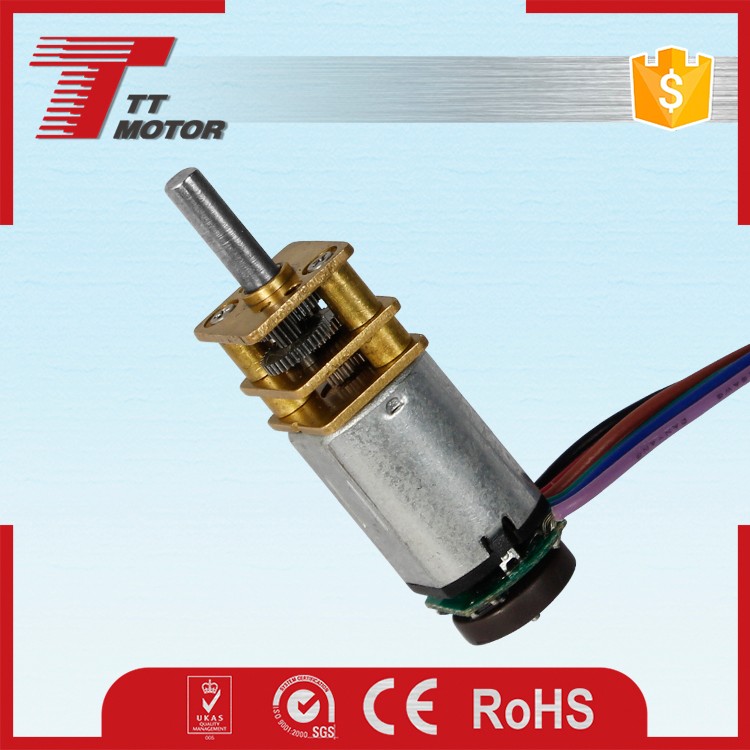

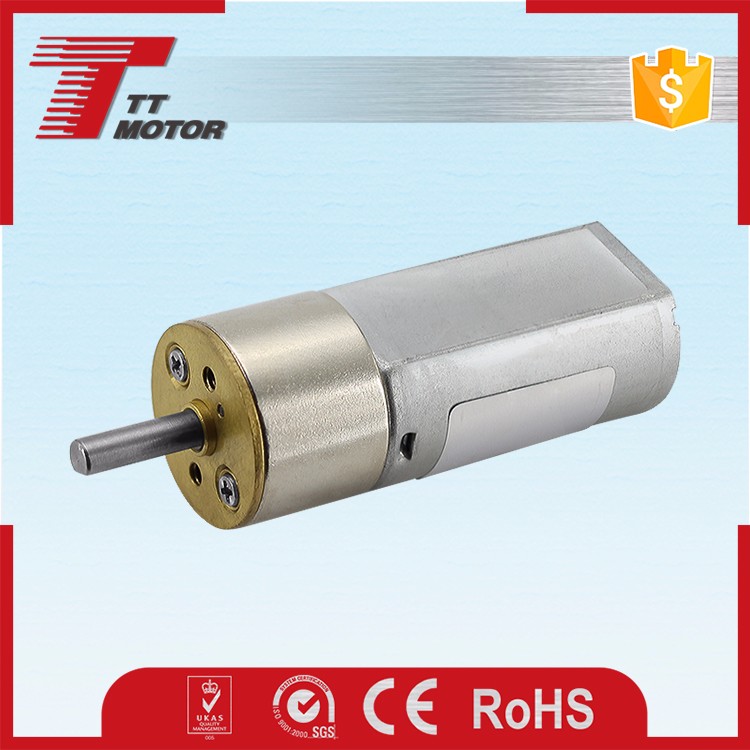

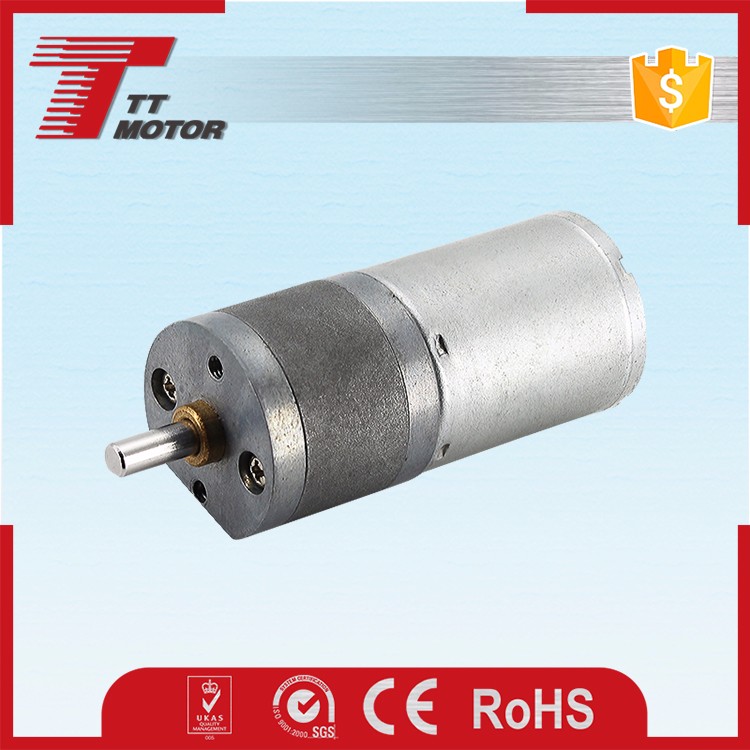

Related Products

Packing & Delivery

Packaging: Single carton packing, 500 pieces per box.

DHL: 3-5 working days

UPS: 5-7 working days

TNT: 5-7 working days

FedEx: 7-9 working days

EMS: 12-15 working days

China Post: Depends on destination country

Sea Shipping: Depends on destination country

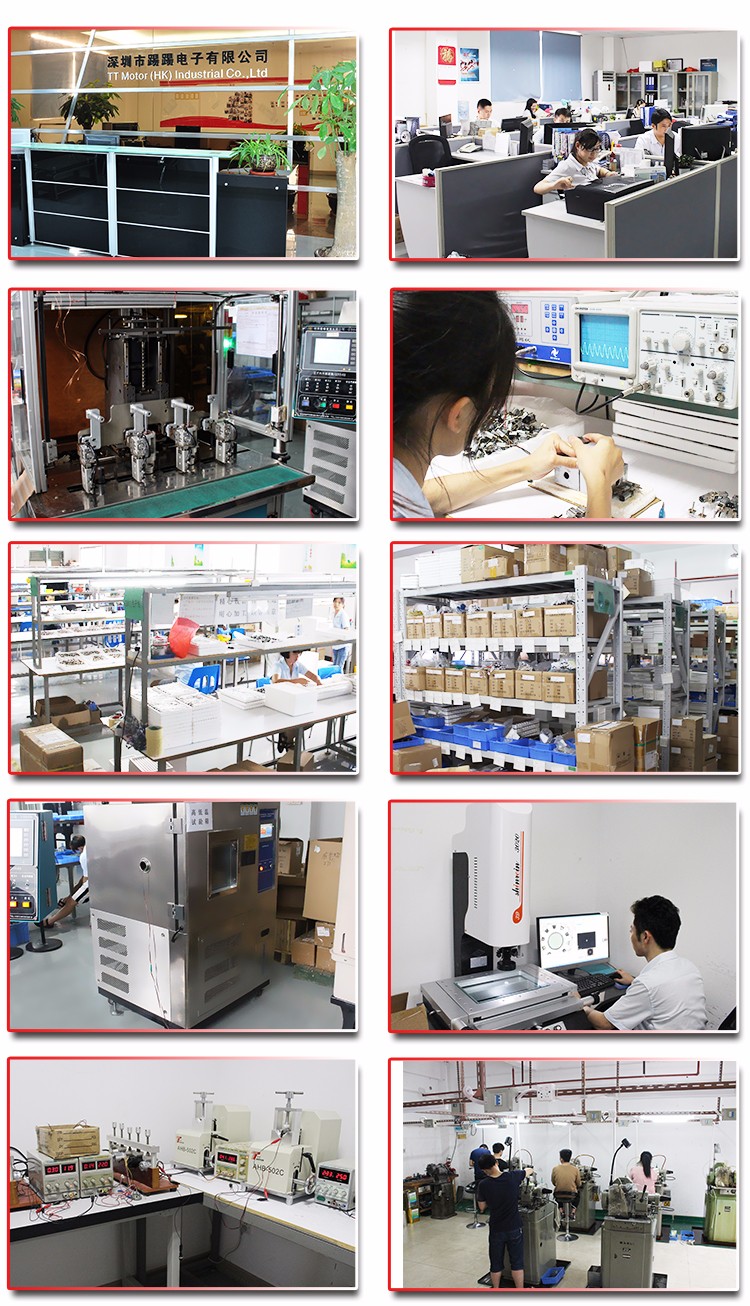

Production Overview

Certifications

Frequently Asked Questions

How to order?

Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

How about Sample order?

Sample is available for you. Please contact us for details. Once we charge you sample fee, please feel easy, it would be refunded when you place the formal order.

Which shipping way is available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipment are available. Other shipping methods are also available upon request, please contact us if you need delivery through alternative carriers.

How long is the delivery (production) and shipping?

Delivery time depends on the quantity you order. Typically, the production cycle takes 15-25 working days.

My package has missing products. What can I do?

Please contact our support team and we will verify your order content against the package dispatch logs. We apologize for any inconvenience caused.

How to confirm the payment?

We accept payment by T/T, PayPal. Other payment options can also be negotiated. Please contact us before processing payment through other methods. A 30-50% deposit is standard, with the remaining balance due prior to shipping.
