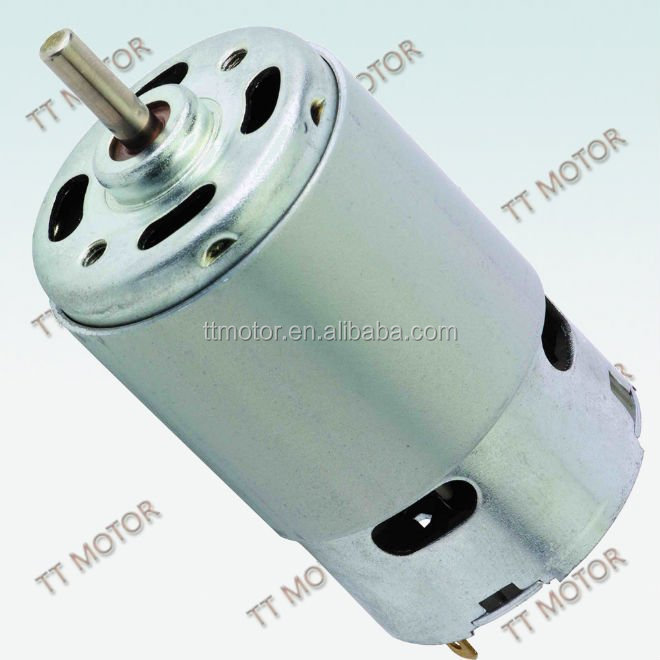

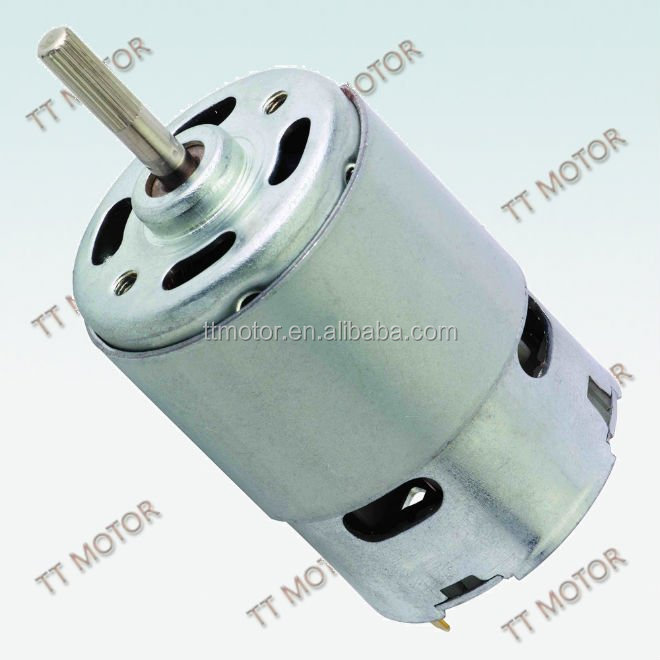

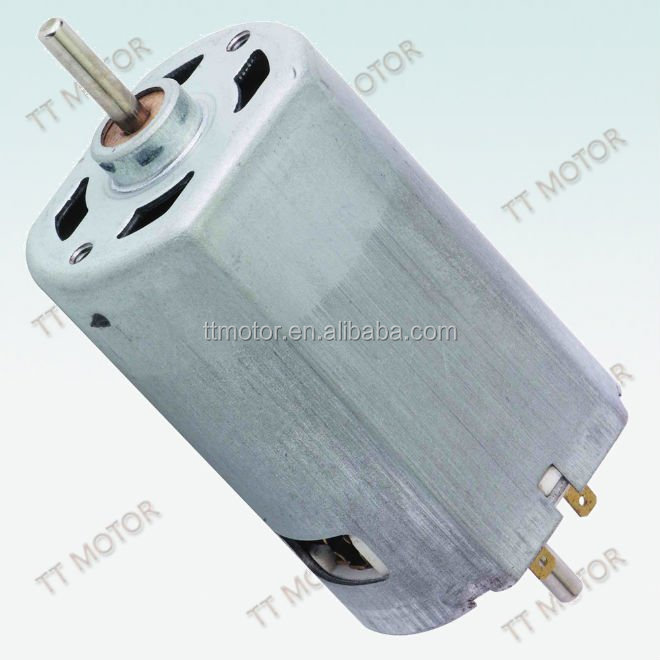

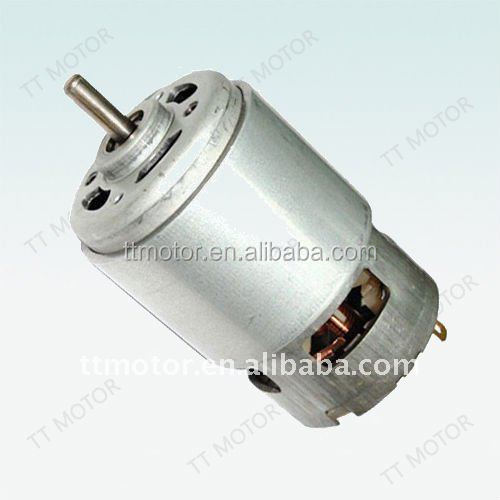

TRS-550PM or 24v Dc Motor
Product Description
24V DC Motor, TRS-550PM
Voltage
120V
Speed
18000 RPM
Torque
3512g.cm
Features
Low current, noise, no spark, no vibration
Typical Applications
Ride-on Toy, Grass trimmer, Air Compressor, Drill
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| TRS-550PM | 35100 | 3.0-18.0 | 12.0 | 5200 | 0.25 | 4330 | 1.60 | 29.41 | 300 | 13.3 | 176.47 | 1800 | 8.32 |
| 6530 | 6.0-12.0 | 12.0 | 18000 | 1.30 | 16100 | 7.15 | 41.18 | 420 | 69.0 | 344.31 | 3512 | 52.0 | |
Frequently Asked Questions
What are the main features of the TRS-550PM DC motor?
The TRS-550PM DC motor is designed to deliver stable performance with low current requirements, minimal noise output, spark-free operation, and exceptionally low vibration during high-speed tasks.
What are the typical applications for this DC motor?
This motor is highly versatile and widely used in ride-on toys, grass trimmers, portable air compressors, and various handheld electric drills.
What is the operating voltage range for the TRS-550PM?
The operating voltage range depends on the specific sub-model: the TRS-550PM-35100 runs within 3.0V to 18.0V (nominal 12.0V), while the TRS-550PM-6530 operates within 6.0V to 12.0V (nominal 12.0V).
What is the maximum torque capacity of the TRS-550PM?
The motor provides a high level of torque, with the TRS-550PM-6530 variant reaching a maximum stall torque of 3512 g.cm at 12.0V.
What no-load speeds can this DC motor reach?
At nominal 12.0V, the TRS-550PM-35100 runs at a no-load speed of 5200 r/min, while the TRS-550PM-6530 variant reaches up to 18000 r/min under no-load conditions.
